pve 制作euler系统模板

安装配置cloud-init和qemu-guest-agent
1. 安装cloud-init

  便于后续管理，比如创建虚拟机的时候分配IP，创建用户，后续磁盘扩容等
```
yum install cloud-init cloud-utils -y
```
  相应的在PVE上添加cloud-init硬件，就一个CD-ROM，随便指定一个共享的存储位置即可

  ‍

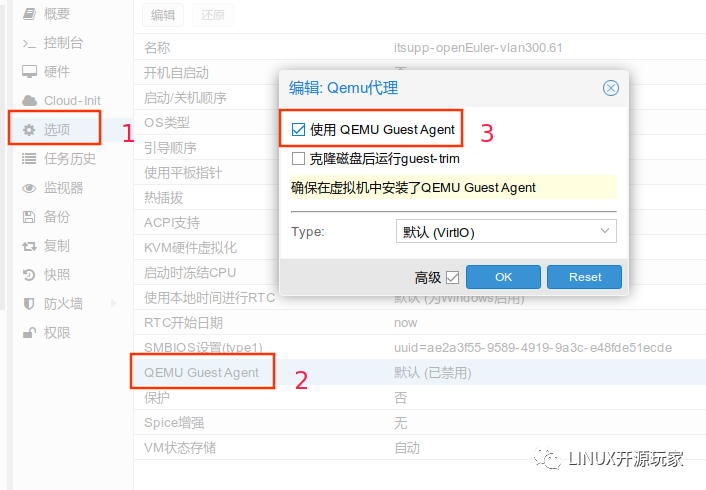

2. 安装qemu-guest-agent

  可以在虚拟机的概要界面直接看到IP地址，也可以通过它获取或修改虚拟机配置
```
yum install qemu-guest-agent -y
```
3. 修改和清理配置
  修改cloud-init的配置文件/etc/cloud/cloud.cfg,允许ssh密码登录,禁止修改网卡
```
vim /etc/cloud/cloud.cfg
	ssh_pwauth 1
#添加一个network
	network:
	  config: disabled
	cloud_init_modules:
	....
	 - network
```
安装 docker¹

安装ipset及ipvsadm

yum -y install ipset ipvsadm


#配置ipvsadm模块加载方式.添加需要加载的模块
cat > /etc/sysconfig/modules/ipvs.module <<EOF
modprobe -- ip_vs
modprobe -- ip_vs_sh
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- nf_conntrack
EOF


授权、运行、检查是否加载
chmod 755 /etc/sysconfig/modules/ipvs.module &&  /etc/sysconfig/modules/ipvs.module

查看对应的模块是否加载成功
# lsmod | grep -e ip_vs -e nf_conntrack_ipv4

关闭SWAP分区

#临时关闭
swapoff -a


#永远关闭swap分区，需要重启操作系统
sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab

关闭防火墙

#关闭现有防火墙firewalld
systemctl disable firewalld

systemctl stop firewalld

firewall-cmd --state
not running

关闭selinux

#临时关闭
setenforce 0

#永久生效
sed -ri 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config

配置内核转发及网桥过滤

#开启内核路由转发
sed -i 's/net.ipv4.ip_forward=0/net.ipv4.ip_forward=1/g' /etc/sysctl.conf

#添加网桥过滤及内核转发配置文件
cat <<EOF >/etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
vm.swappiness = 0
EOF

配置加载br_netfilter模块
cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF

#加载br_netfilter overlay模块
modprobe br_netfilter
modprobe overlay

#查看是否加载
lsmod | grep br_netfilter
br_netfilter           22256  0

使用默认配置文件生效
sysctl -p

#使用新添加配置文件生效
sysctl -p /etc/sysctl.d/k8s.conf

安装container 容器

使用containerd 作为容器，下载 containerd 包

wget https://github.com/containerd/containerd/releases/download/v1.6.6/cri-containerd-cni-1.7.22-linux-amd64.tar.gz

这里需要制定解压目录为【/】，包自带结构。
tar zxvf cri-containerd-cni-1.6.6-linux-amd64.tar.gz -C /

创建容器目录
```
mkdir /etc/containerd
```

生成容器配置文件

containerd config default  >> /etc/containerd/config.toml

配置systemdcgroup 驱动程序

vim /etc/containerd/config.toml


[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
  ...
  [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
    SystemdCgroup = true


[plugins."io.containerd.grpc.v1.cri"]
  sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.2"

#删除32的disabled_plugins
disabled_plugins = []

#修改disabled_plugins = ["cri"]
disabled_plugins = ["io.containerd.cri.v1"]

更新runc，因为cri-containerd-cni-1.6.6-linux-amd64.tar.gz的runc二进制文件有问题，最后说明。这一步很重要 ✰ ✰ ✰ ✰ ✰ ✰ ✰ ✰ ✰ ✰ ✰ ✰
```
wget https://github.com/opencontainers/runc/releases/download/v1.1.3/runc.amd64
mv runc.amd64 /usr/local/sbin/runc
chmod +x /usr/local/sbin/runc
```

启动containerd服务

systemctl start containerd
systemctl enable containerd

安装cri-dockerd

# 下载
wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.3/cri-dockerd-0.3.3.amd64.tgz
tar -xf cri-dockerd-0.3.3.amd64.tgz
cp cri-dockerd/cri-dockerd /usr/bin/
chmod +x /usr/bin/cri-dockerd

# 配置启动文件
cat <<"EOF" > /usr/lib/systemd/system/cri-docker.service
[Unit]
Description=CRI Interface for Docker Application Container Engine
Documentation=https://docs.mirantis.com
After=network-online.target firewalld.service docker.service
Wants=network-online.target
Requires=cri-docker.socket

[Service]
Type=notify

ExecStart=/usr/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.7

ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always

StartLimitBurst=3

StartLimitInterval=60s

LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity

TasksMax=infinity
Delegate=yes
KillMode=process

[Install]
WantedBy=multi-user.target
EOF

# 生成socket 文件

cat <<"EOF" > /usr/lib/systemd/system/cri-docker.socket
[Unit]
Description=CRI Docker Socket for the API
PartOf=cri-docker.service

[Socket]
ListenStream=%t/cri-dockerd.sock
SocketMode=0660
SocketUser=root
SocketGroup=docker

[Install]
WantedBy=sockets.target

EOF

# 启动CRI-DOCKER
systemctl daemon-reload
systemctl start cri-docker
systemctl enable cri-docker
systemctl is-active cri-docker

kubernetes YUM源准备

cat >/etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

yum clean all && yum makecache


#安装kubernetes

# 查看所有的可用版本
yum list  kubeadm  kubelet kubectl --showduplicates | sort -r

yum install  kubelet-1.24.2 kubeadm-1.24.2 kubectl-1.24.2 -y

#安装后查看版本
kubeadm version
kubeadm version: &version.Info{Major:"1", Minor:"24", GitVersion:"v1.24.2", GitCommit:"f66044f4361b9f1f96f0053dd46cb7dce5e990a8", GitTreeState:"clean", BuildDate:"2022-06-15T14:20:54Z", GoVersion:"go1.18.3", Compiler:"gc", Platform:"linux/amd64"}


设置kubelet为开机自启动即可，由于没有生成配置文件，集群初始化后自动启动
 systemctl enable kubelet --now

#此时kubelet状态是activating的，不是active的
systemctl is-active kubelet

配置kubelet
为了实现docker使用的cgroupdriver与kubelet使用的cgroup的一致性，建议修改如下文件内容。
```
cat <<EOF > /etc/sysconfig/kubelet
KUBELET_EXTRA_ARGS="--cgroup-driver=systemd"
EOF
```

清理文件和关机

yum clean all
> /etc/machine-id
rm -f /etc/ssh/ssh_host_*
rm -rf /root/.ssh/
rm -f /root/anaconda-ks.cfg
rm -f /var/log/boot.log
rm -f /var/log/cron
rm -f /var/log/dmesg
rm -f /var/log/grubby
rm -f /var/log/lastlog
rm -f /var/log/maillog
rm -f /var/log/messages
rm -f /var/log/secure
rm -f /var/log/spooler
rm -f /var/log/tallylog
rm -f /var/log/wpa_supplicant.log
rm -f /var/log/wtmp
rm -f /var/log/yum.log
rm -f /var/log/audit/audit.log
rm -f /var/log/ovirt-guest-agent/ovirt-guest-agent.log
rm -f /var/log/tuned/tuned.log
rm -f /etc/udev/rules/70-persistent-*-rules
rm -f /root/.bash_history
history -c
init 0

‍

安装docker
以22.sp2为例 ↩
